Beverage Filling Line

Beverage Filling Line Featured Image
  • Beverage Filling Line

Short Description:

This beverage filling line includes filling, capping, labeling machine and even can add bottle unscrambler, bottle washer, and carton packing machines if need. It can be full automatic line from A to Z.


Product Detail

Video

Customers' Feedback

Transaction History

Certificate

Product Tags

Filling machine

Filling machine001

Overview

This machine is used to fill various liquid and viscous products, juice, beverage etc. It adopts piston pump filling with servo motor driven which is more accurate and easy to adjust the volume.

Parameter

Program

Beverage filling line

Filling head

2, 4, 6, 8, 10, 12, 16 etc(optional according to speed)

Filling volume

1-5000ml etc(customized)

Filling speed

200-6000bph

Filling precision

≤±1%

Power supply

110V/220V/380V/450V etc(customized) 50/60HZ

Power supply

≤1.5kw

Air pressure

0.6-0.8MPa

Net weight

450kg

Screw capping machine

Filling Line1

The interactive screw capping machine is the new product developed by our company. It adopts magnetic moment capping head to screw the caps and manipulator to place caps, which is more accurate and stable than common machine. The manipulator work achieve through cam. Clutch is equipped, if any bottle blocked, the starwheel would stop automatically. It is practical, and the ideal equipment in such industries like pharmacy, food, chemical industry etc.

Double side and round bottle labeling machine

Filling Line2

Introduction

This double side labeling machine is used to label both flat or square bottles and round bottles. It is economical, and easy to operate, equipped with HMI touch screen & PLC Control System. Built in microchip makes fast and easy adjustment and changeover.

Specifications

Speed 20-100bpm( related to product and labels)
Bottle size 30mm≤width≤120mm；20≤height≤400mm
Label size 15≤width≤200mm，20≤length≤300mm
Labeling issuing speed ≤30m/min
Accuracy(excluding container and label’s error) ±1mm (excluding container and label’s error )
Labels materials Self-sticker, not transparent (if transparent, it needs some extra device）
Inner diameter of label roll 76mm
Outer diameter of label roll Within 300mm
Power 500W
Electricity AC220V 50/60Hz single-phase
Dimension 2200×1100×1500mm
  • Previous:
  • Next:

    • Customersfeedback010

    Customersfeedback020

    Customersfeedback030

    Customersfeedback040

    Customersfeedback050

    Customersfeedback060

    Transaction History001

    Transaction History002

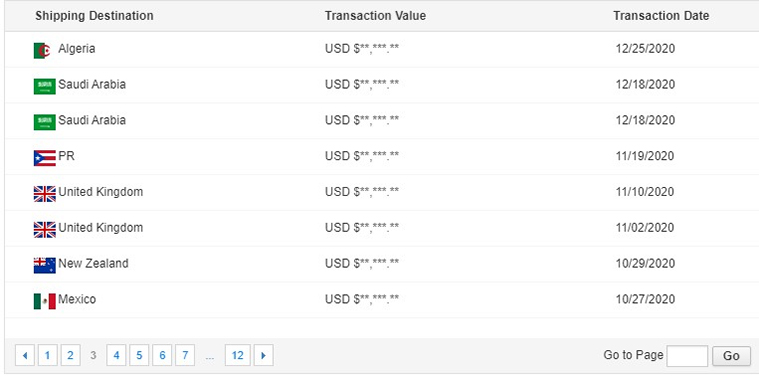

    Transaction History003
