Brightwin manufacture Price Easy Operate Bottle Motor Oils /Engine Oil Filling Machine CE ISO 9001

Short Description:

Special advantages of our filling machine:

1. Sealing ring imported from Germany, which is no need to replace within 3 years.

2. Sepcially designed SUS316L LONG no–drip filing nozzles, which can protect the cylinder on the top being damaged by material.

3. 304 frame, 5mm thick SUS316L honing piston pump, manufactured by Taiwan producer.

4. With detector in each SUS316L valve and filling nozzle, if there is any problem in any nozzle, it shows in touch screen, its easy to be found.

5. With automatic cleaning system.

Send email to us

Product Detail

Video

Customer voice

Shipping and certificate

transaction history

Contact us

Product Tags

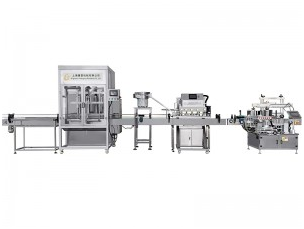

This machine is used to fill various liquid or viscous liquid products, like cooking oil, lube oil, beverage, juice, sauce, paste, cream, honey, and chemicals etc as long as its liquid. It adopts piston pump filling with servo motor driven which is more accurate and easy to adjust the volume. With rotary valve or non-rotary valve according to different products.

Parameter

program	filling machine
Filling head	2, 4, 6, 8, 10, 12, 16 etc(optional according to speed)
Filling volume	1-5000ml etc(customized)
Filling speed	200-6000bph
Filling precision	≤±1%
Power supply	110V/220V/380V/450V etc(customized) 50/60HZ
Power supply	≤1.5kw
Air pressure	0.6-0.8MPa
Net weight	450kg

Elements brand

Item	Brands and material
sensor	Omron
PLC	SIEMENS
Touch screen	SIEMENS
Servo motor	Mitsubishi
Piston cylinder	5MM thick SUS316L
Rotary valve	SUS316L
Rotary valve connection	quick coupler designed from Germany
Filling nozzles	SUS316L stainless steel anti-drip quick-coupler design
Cylinder	Airtac Taiwan
Connecting pipe	fast loading pipe from Italy
Sealing ring	food grade material from Germany
electrical parts	Schneider
Rack	SUS304
bearings	Japan NSK, original imported
Level control in hopper	with

Details of filling machine

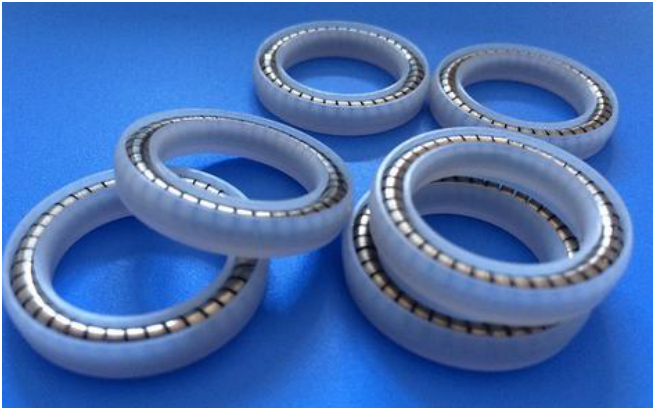

1. The material of sealing ring is imported from Germany. It is composed of stainless steel spring and UPE (ultra high molecular weight polyethylene).

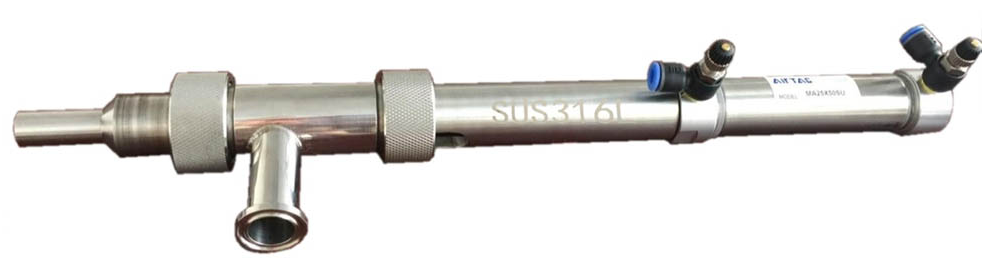

2. Equipped with SUS316L long sepcial designed no–drip filing nozzles, which can protect the cylinder on the top being damaged by material. As following pictures:

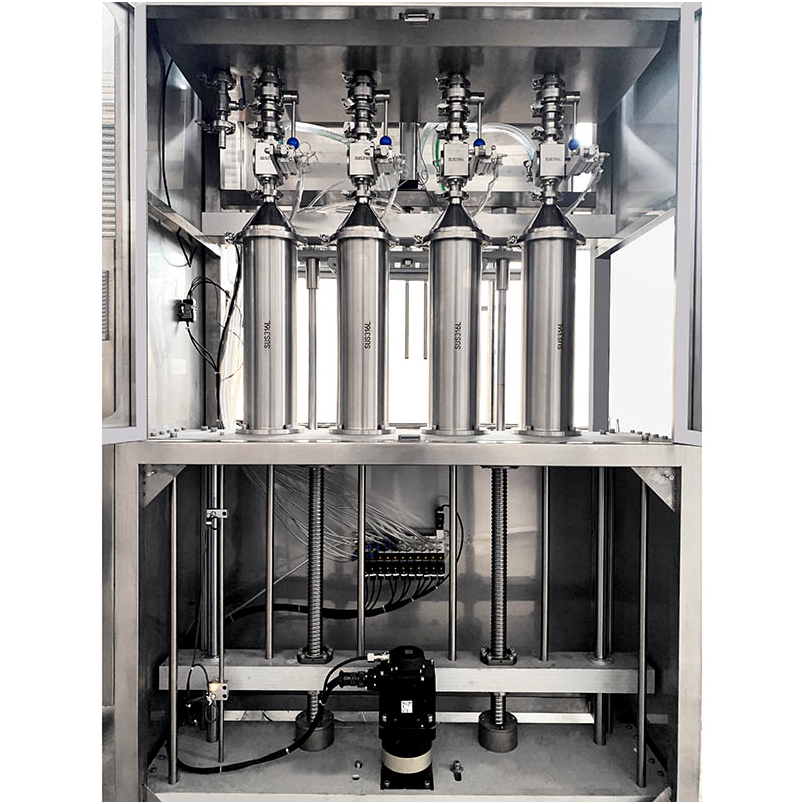

3. 304 frame, 5mm thick SUS316L honing piston pump, manufactured by Taiwan producer

4. With detector in each SUS316L valve and filling nozzle, if there is any problem in any nozzle, it shows in touch screen, it’s easy to be found.

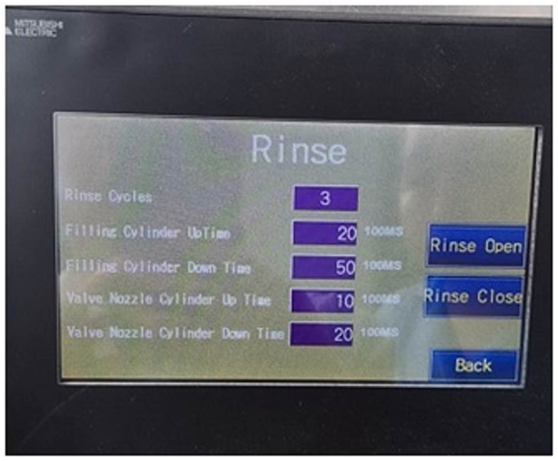

5. with automatic cleaning system
