Brigtwin factory hand sanitizer gel shampoo laundry detergent filling machine hand washing liquid filling machine capping label

Short Description:

1. All materials are of high quality;
2. With components international brands like MITSUBISHI, SCHNEIDER, OMRON ETC;
3. Engineers with experience more than 20 years;
4. Offer the best after-sale service.

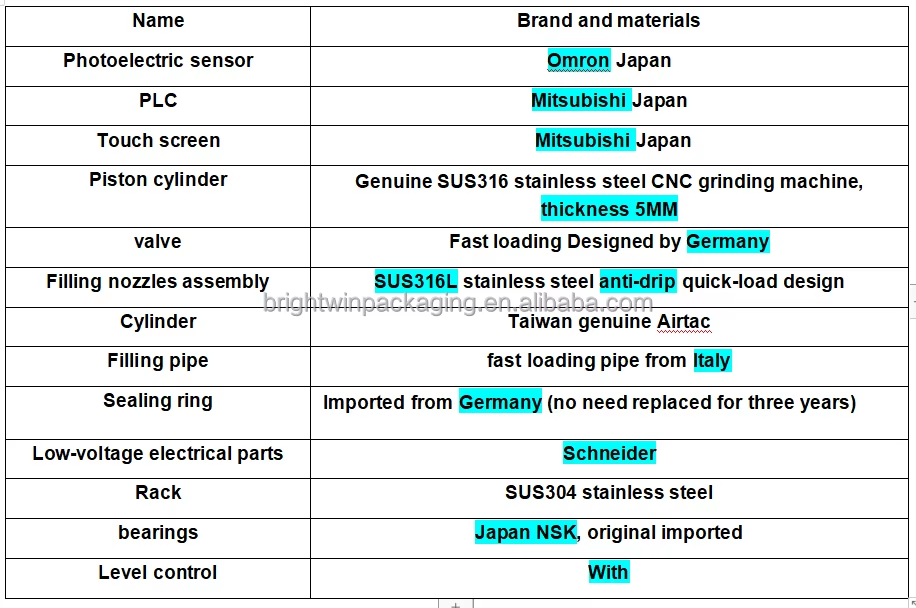

Components list

Send email to us

Product Detail

Product Tags

Filling line layout

1. Filling Machine: Filling requested volume liquid or thick liquid into bottles.
2. Capping Machine: Tightening the caps on bottles.
3. Induction Sealing Machine: Sealing the foil film tighten on bottle mouths.
4. Labeling Machine: Labeling the stickers on the requested position of the bottles.
5. Carton Packing machine: Packing the finished bottles into cartons and sealing.
6. Cartons Palletizer: Palletizing finished cartons on pallets as requested.

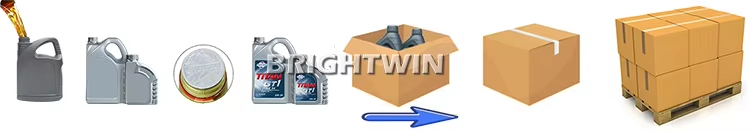

Product Evolution Flowchart

1. Filling machine

The filling machine is used to fill liquid or thick liquid into bottles, like: cooking oil, lube oil, shampoo, jam, honey, meat paste, sauce, agricultural chemical, cosmetics etc. According to different products, it can choose different filling method: piston pump, weighing, rotor pump, flow meter, gravity etc.

2. Capping machine

This automatic capping machine can automatically finish feeding caps and screw tightening the caps tighten on bottles’ mouth. It adopts elevator to feed caps in one line, it is a high cost performance machine. It is suitable for various threaded bottles and caps.

3. Induction sealing machine

This induction sealing machine is used to seal the aluminum foil film which is inside the caps tighten on containers’ mouth. It is suitable for airtight sealing of aluminum foil in agricultural, food, petrochemical, daily chemical and other industries.

4. Labeling machine

This machine is used to label Self-adhesive stickers onto containers such as flat bottles, ellipse bottles, hexagon bottles, cans and other standable objects with one, two or more stickers. It can share one machine for different container size and sticker size
within large limit.

5. Carton packing machine

This carton packing machine can automatically finish opening carton boxes, packing finished bottles into carton boxes as requested arrangement, finally sealing the carton boxes. According to the bottles’ material and capacity need it will adopt different
packing method, like: drop, grab, and push etc.

6. Stickers feeding device

Palletizer is a machine that automatically feeds pallets one by one, and stacks finished carton boxes onto pallets in a certain arrangement. It can stack multiple layers and then push the full pallets out for easy forklift transportation to the warehouse for
storage.

Main features:

1. It’s designed and manufactured according to customers’ different products, bottles, caps, packaging method and capacity etc.
2. According to the capacity to decide the filling method, filling nozzle’s number, capping method, labeling type, carton packing type and palletizing method.
3. Suitable for different size bottles caps stickers cartons by adjusting the line or change few parts.
4. All the details can be customized to meet every customers’ demands.

Technical Parameters

Filling nozzles’ number	1	2	4	6	……..	20
Capacity (For 1L bottles)	6-8bpm	12-16bpm	24-32bpm	36-48bpm	……..	120-160bpm
Filling volume range	10-100ml, 100ml-1L, 1L-5L……(can be customized)
Voltage	AC220/380V 50/60HZ (Can be customized)
