Small Bottle Filling, Plugging And Capping Machine

Short Description:

Small bottle filling, plugging and capping machine is applicable for essential oil, e-liquid, ejuice, eyedrops, and iodine etc. the machine is designed according to the products and sample bottles and caps, there can be with or without plugs.

Our advantages:
1. 2mm thick SUS304 machine frame.
2. SIEMENS PLC and touch screen; Mitsubishi inverter and Schneider electrical elements.
3. With mechanical arm to take and put plugs and caps.
4. Magnetic torque capping head without damage of caps.
5. Stable and reasonable design structure.


Product Detail

Video

Customers' Feedback

Transaction History

Certificate

Product Tags

Small bottle filling, plugging & capping machine

Small bottle filling, plugging and capping machine6

Overview

This machine is mainly applied to various material round bottle, flat bottles. Filling material could be small dose of medicine liquid, like eyedrop, syrup, iodine, and eliquid etc.

Peristaltic pump keep the filling liquid clean ,has high measuring precision.

The machine finished all works of bottle feeding, filling, putting inner plug if there is and capping outer covers automatically.

Feature

● High filling precision.
● Suitable for different bottle size, 1ml-100ml.
● The machine adopts full-auto PLC and human-computer touch screen control system.
● No bottles, stop filling.
● No bottles, No plunger and caps feeding.
● Magnetic moment capping, adjustable on pine, tight, do not hurt the jar and cover.
● Versatility, suitable for different specifications and bottle type, changing accessories convenient.
● Photoelectric detection devices make the machine realize down work to protection and automatic start up when lack of bottle or more bottles and other working fault.
● Stepless speed regulation, the microcomputer, man-machine interface control, convenient operation adjustment.
● Mechnical arm take and put plug and cap, stable and very accurate.

Parameter

Model

BW-SF

Packing material

Liquid

Filling nozzle

1/2/4 etc

bottle size

customized

Filling Volume

customized

Capacity

20-120bottles/min

Total power consumption

1.8Kw/220V(customized)

Machine Weight

Approx. 500 Kgs

Air supplier

0.36³/minute

Single machine noise

≤50dB

Elements brand

Number Item Manufacturer Origin Picture
1 PLC Siemens Germany Small bottle filling, plugging and capping machine001
2 Breaker Schneider Germany Small bottle filling, plugging and capping machine002
3 Photoelectric switch Leuze Germany Small bottle filling, plugging and capping machine003
4 Frequency transformer Mitsubishi Japan Small bottle filling, plugging and capping machine004
5 Air switch Schneider France box packing machine7
6 Switchgear/relays Omron Japan box packing machine8

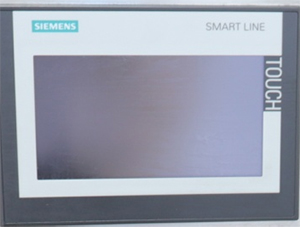

7 Operator panel Siemens Germany Germany

Our special advantages

1. SIEMENS PLC and touch screen

Small bottle filling, plugging and capping machine005

2. Mechanical arm to take and put plugs and caps.

Small bottle filling, plugging and capping machine006

3. Magnetic torque capping head without damage of caps.

Small bottle filling, plugging and capping machine007

4. Stable and reasonable design structure.

Small bottle filling, plugging and capping machine008

After sales service

1. Offer professional operation manual
2. Online support
3. Video technical support
4. Free spare parts during warranty period
5. Field installation, commissioning and training
6. Field maintenance and repair service
